Single Band PIM Analyzers

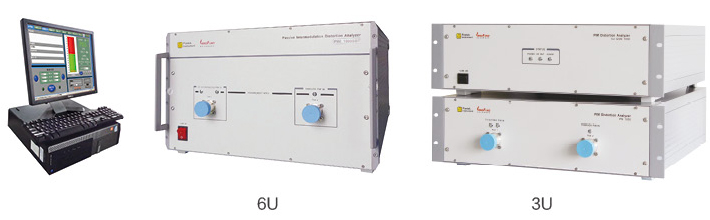

The Single-Band PIM Analyzers which cover 350~3500MHZ frequancy band are used for measuring PIM on broadband passive components (such as base station antenna ,RF connector ,cavity filter, arrester,jump cable,low PIM termination,ect) .These have two measurement models---"Production Mode" and "Engeering Mode " which makes more convenient and accurate observation and analysis of the results of measurement.There are two different configuration of single band analyzers--- "6U type" and "3U type" as follows:

6U type：

6U type has conventional structure with larger inner capacity, which is great for heat dissipation under high-temperature environment.

3U type：

3U  type is assembled by two cases. It has two outstanding features. Firstly, interference has been greatly reduced by separating RF amplifier and duplexer

receiver. Secondly, the Multiple Band Analyzer can be easily assembled by connecting different Single-Band Analyzers via cables.

Product Features

• Fully configurable frequencies, power and IM products

• High intergration density,no need to build complicated platform


• Simple to operate, user-friendly bilingual (English/Chinese)

• Reflect (standard) and transmit(option)

• Data stored

• Barcode scannnig(option)

• Insertion loss compensation fuction gurantees testing accuracy

• Double reflector ports test with one click(option)

• Three methods of  measurement :Dot frequency,Frequency sweep and Time domain

• All bands of China Mobile are covered in PIM testing

• Analyzed result can be exported in format of Microsoft Word/Excel/PDF.

Technical Specifications

System

Trasmitter

Receiver

Electrical

Mechnical

Environmental

Models

* Customized
