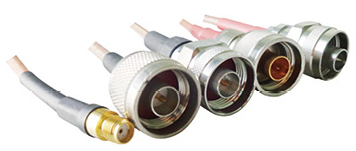

Network Analyzer Test Cables
PIMTEK offers a complete range of stable and reliable low VSWR jump cables, which provides clean path for Reference S testing.Cables which applied to veries occasions of "S Parameter" testing.
PRODUCT FEATURES
Low VSWR relative to industrial average
Wide band (0 to 6GHz)
Good shielding ≥90dB
Good stability ,low loss
TECHNICAL SPECIFICATION
System
| Frequency Range | (1) 0 to 3GHz (2)0 to 6GHz |
| Input Impedance | 50 Ohm |
| VSWR | ≤1.10@3GHz |
| ≤1.18@6GHz | |
| Isolation | ≥90dB |
| Connector Type | N (Male) - N(Male)/N(Male)-SMA(Male) |
| Plug Methods | (1) Thread Screw Together |
| (2) Treadless quick plug |
Environmental
| Operating Temperature Range | -10 ℃ to +40 ℃ |
| Length Dimension | 0.8 to 2M |
* Customized
